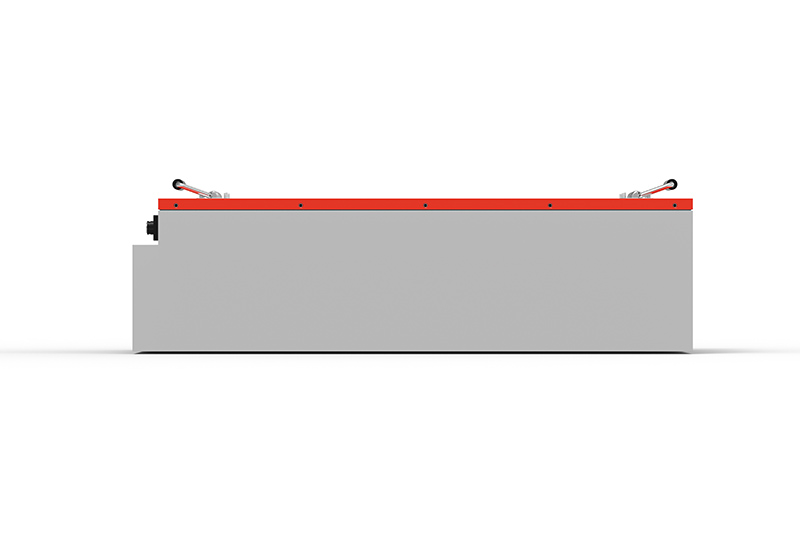

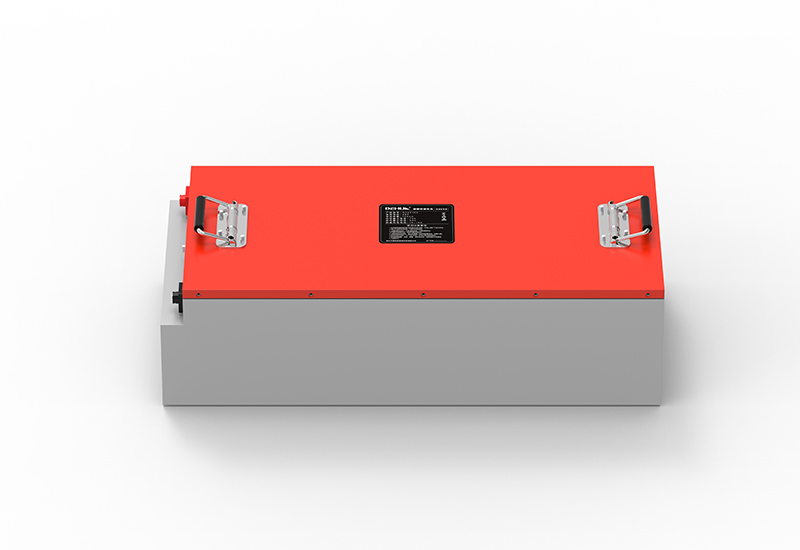

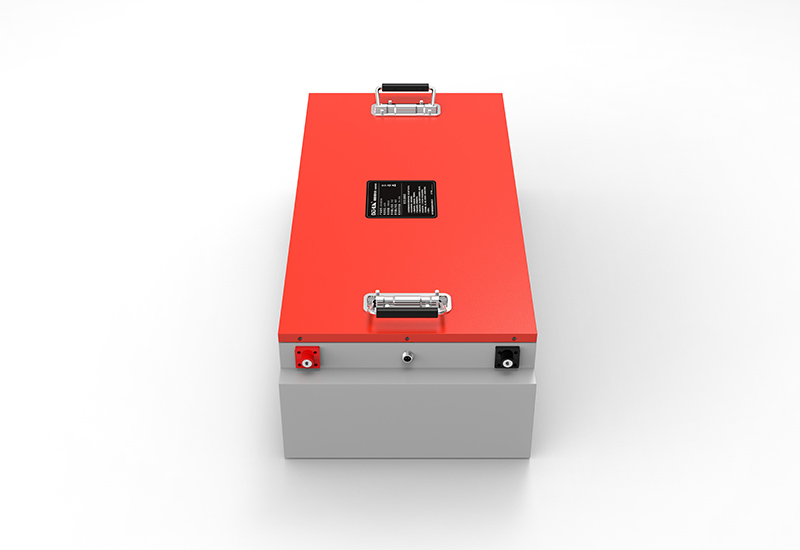

Model:DH-60V150AH
mAh:150AH
Cell:Lithium iron phosphate
Dimensions:758*325*220(mm)
Use:Low-speed vehicle lithium battery
Model:DH-60V150AH
mAh:150AH
Cell:Lithium iron phosphate
Dimensions:758*325*220(mm)
Use:Low-speed vehicle lithium battery
Usage precautions
1, please use the manufacturer's matching national standard lithium battery charger to charge;
2, to charge in the set charging area, charging away from flammable materials;
3. Charging voltage, charging current and charging ambient temperature shall not be higher than the upper limit of parameters specified in this manual;
4, correctly connect the positive and negative terminals of the battery to avoid reverse connection;
5, prohibit the use of lithium batteries, do not short circuit lithium batteries;
6, when the battery is impacted by collision, fall, extrusion deformation, test and then use;
7, the use of lithium batteries should be away from fire, heat sources, to avoid direct sunlight;
8, can not privately the voltage, the internal assistant is not the same battery, series charging and use;
9. It is forbidden to disassemble the lithium battery and use sharp instruments to puncture the lithium battery;
10, once the lithium battery is on fire, the fire lithium battery is quickly buried in water or soil;
11, it is strictly prohibited to charge lithium batteries in the corridor or the house;
Transportation
1. No metal items are allowed above the lithium battery during transportation;
2, it is prohibited to mix with other items during transportation;
3, lithium battery less than 50% of the state transport
Store
1, lithium battery 50% power storage, supplement once a month, can extend the service life;
2, long-term storage of lithium batteries, should be placed in a dry, ventilated and cool place, the ambient temperature of 0~35℃ humidity 5%;
3. Lithium batteries are prohibited from being stored near fire sources and high temperatures;
4, storage lithium battery pay attention to moisture, waterproof, prevent water;
The energy density of lithium batteries far exceeds that of other types of batteries, such as lead-acid batteries and nickel-metal hydride batteries. Under the same volume, the energy density of lithium batteries can reach 180-220Wh/Kg, or even higher.
Lithium battery has good thermal stability, is not easy to occur thermal fusion, and its internal resistance value is very small, can effectively prevent self-discharge, so as to achieve safe and reliable use.
The volume and weight of lithium batteries are smaller than traditional batteries, which makes lithium batteries widely used in a variety of electronic devices, such as mobile phones, laptops, cameras, power tools and so on.
Lithium battery charging speed is fast, save time, can work normally between -20℃ ~ 60℃, adapt to various environmental conditions.
Model specifications | DH-60V150AH | |
Cell type | Lithium iron phosphate | |
Welding method | Laser welding | |
Capacity | 150AH | |
Maximum power | 7000W | |
Maximum continuous operating current | 120A | |
Supports fast charging streams | 70A | |
Standard charging current | 20A-30A | |
Charge cut-off voltage | 73V | |
Low temperature charge heating | There is no | |
Bluetooth meter | ||
Mobile phone Bluetooth | Scan the QR code to download Xiaoxiang APP (available for Android) To see more battery information on your phone | |
GPS | There is no | |
Comm 485 | There is no | |
Communication CNA | There is no | |
Service life | 3,000 times | |
Energy | 9600wh | |
Protection features | Short circuit, over current, over charge, over discharge, high temperature, low temperature, under voltage, over voltage and other protection functions | |
Overcurrent/short circuit protection recovery conditions | Charge or disconnect load recovery | |
Waterproof class | IP65 | |
Weight | 72.6 kg | |

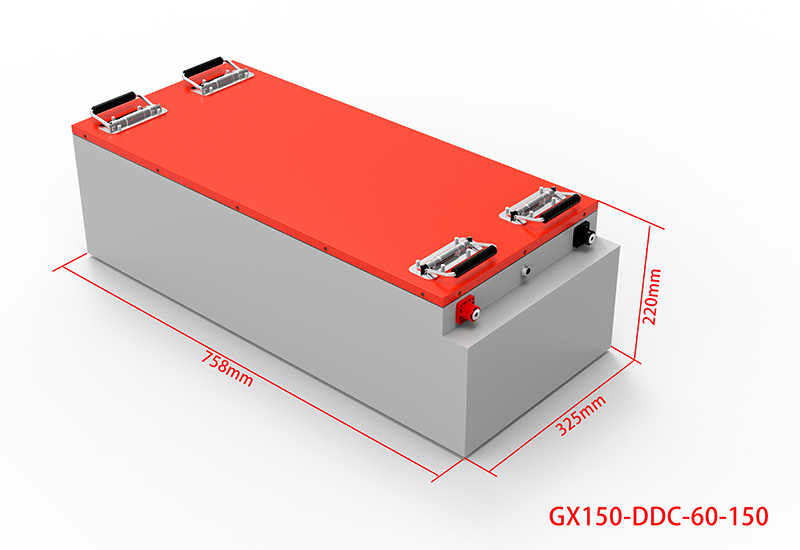

Battery pack size | Dimensions: 758 x 325 x 220 (mm) | |
Transport and store electricity | 50% |
