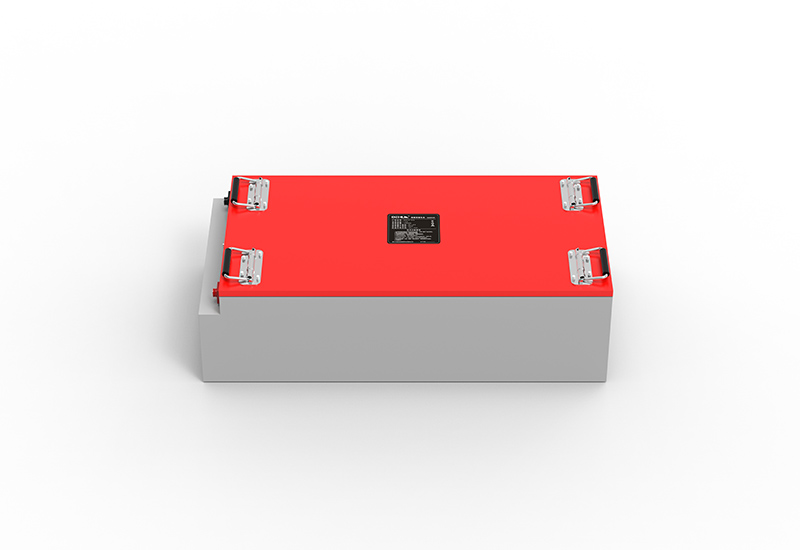

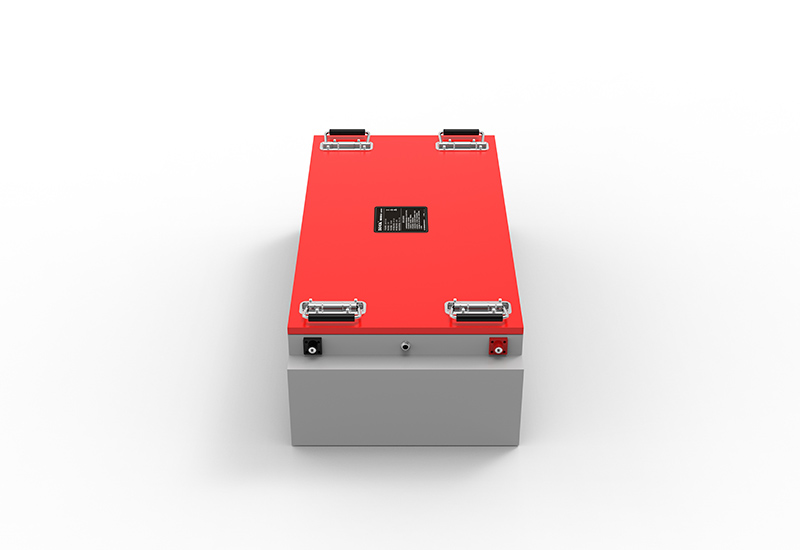

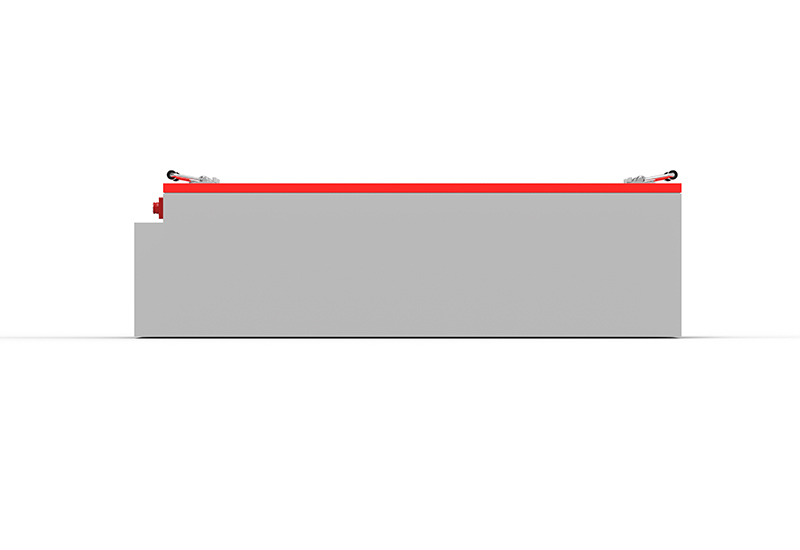

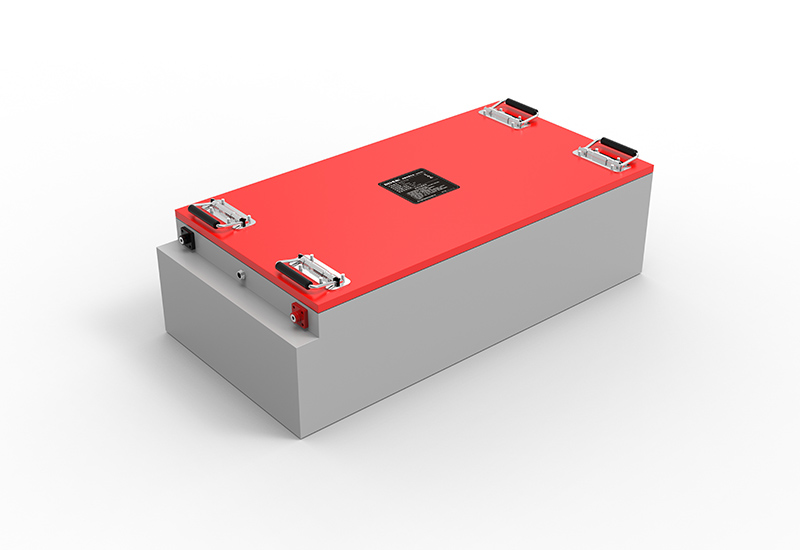

Model:DH-72V150Ah
mAh:150Ah
Cell:3.2V150AH
Dimensions:758*382*212mm
Use:Special for electric flatbed carts
Model:DH-72V150Ah
mAh:150Ah
Cell:3.2V150AH
Dimensions:758*382*212mm
Use:Special for electric flatbed carts
Usage precautions
1, please use the manufacturer's matching national standard lithium battery charger to charge;
2, to charge in the set charging area, charging away from flammable materials;
3. Charging voltage, charging current and charging ambient temperature shall not be higher than the upper limit of parameters specified in this manual;
4, correctly connect the positive and negative terminals of the battery to avoid reverse connection;
5, prohibit the use of lithium batteries, do not short circuit lithium batteries;
6, when the battery is impacted by collision, fall, extrusion deformation, test and then use;
7, the use of lithium batteries should be away from fire, heat sources, to avoid direct sunlight;
8, can not privately the voltage, the internal assistant is not the same battery, series charging and use;
9. It is forbidden to disassemble the lithium battery and use sharp instruments to puncture the lithium battery;
10, once the lithium battery is on fire, the fire lithium battery is quickly buried in water or soil;
11, it is strictly prohibited to charge lithium batteries in the corridor or the house;
Transportation
1. No metal items are allowed above the lithium battery during transportation;
2, it is prohibited to mix with other items during transportation;
3, lithium battery less than 50% of the state transport
Store
1, lithium battery 50% power storage, supplement once a month, can extend the service life;
2, long-term storage of lithium batteries, should be placed in a dry, ventilated and cool place, the ambient temperature of 0~35℃ humidity 5%;
3. Lithium batteries are prohibited from being stored near fire sources and high temperatures;
4, storage lithium battery pay attention to moisture, waterproof, prevent water;
The energy density of lithium batteries far exceeds that of other types of batteries, such as lead-acid batteries and nickel-metal hydride batteries. Under the same volume, the energy density of lithium batteries can reach 180-220Wh/Kg, or even higher.
Lithium battery has good thermal stability, is not easy to occur thermal fusion, and its internal resistance value is very small, can effectively prevent self-discharge, so as to achieve safe and reliable use.
The volume and weight of lithium batteries are smaller than traditional batteries, which makes lithium batteries widely used in a variety of electronic devices, such as mobile phones, laptops, cameras, power tools and so on.
Lithium battery charging speed is fast, save time, can work normally between -20℃ ~ 60℃, adapt to various environmental conditions.
Items | Parameters | Remarks | |
Battery model | DH-72V150Ah | ||
Cell model number | 3.2 V150AH | ||
Nominal voltage | 76.8 V | ||
Nominal capacity | 150Ah | 0.5 C, 25 ℃ | |
Energy | 11520kwh | ||
Combination way | 24S1P | ||
Battery materials | Lithium iron phosphate | ||
Electric Discharge | Working current | ≤120A | |
Maximum current | ≤360A | < 2S | |
Cut-off voltage | 60V | ||
Charging | Charging voltage | 87.6 V | |
Maximum current | ≤25A | ||
Charging mode | Constant current/constant voltage | CC/CV | |
Charging cutoff current | About 0.02C5A | CC/CV | |
Operating temperature | Charging temperature | 0 ℃ to + 45 ℃ | At60±25%RH environment is greater than 45℃, pay attention to ventilation and heat dissipation |
Discharge temperature | - 10 ℃ - + 55 ℃ | Greater than 60% is pay attention to waterproof | |
Charge and discharge humidity | RH≤60% | ||
Protective features | Over charge protection, over discharge protection, over current protection, short circuit protection | ||
Weight | |||
Measurements | 758*382*212mm | ||
Smart features | Bluetooth, GPS, RS485, CAN, one-click strong start, reservation heating, etc | Customizable options are available as needed |
