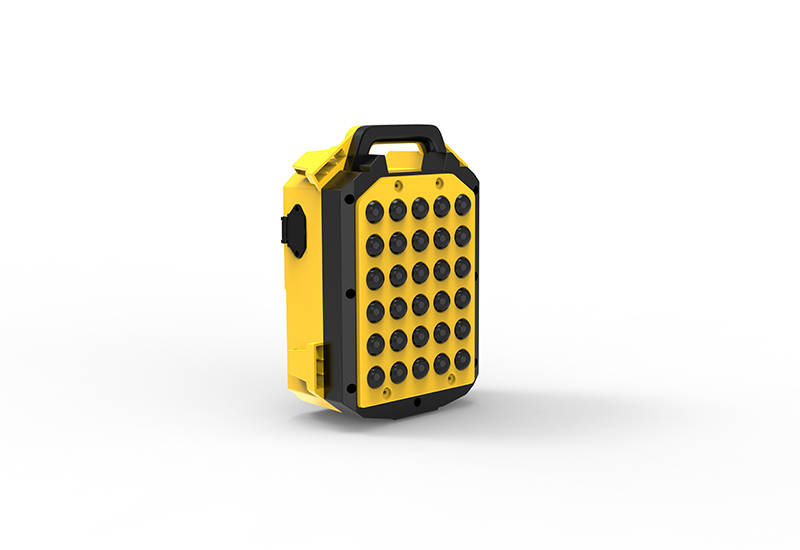

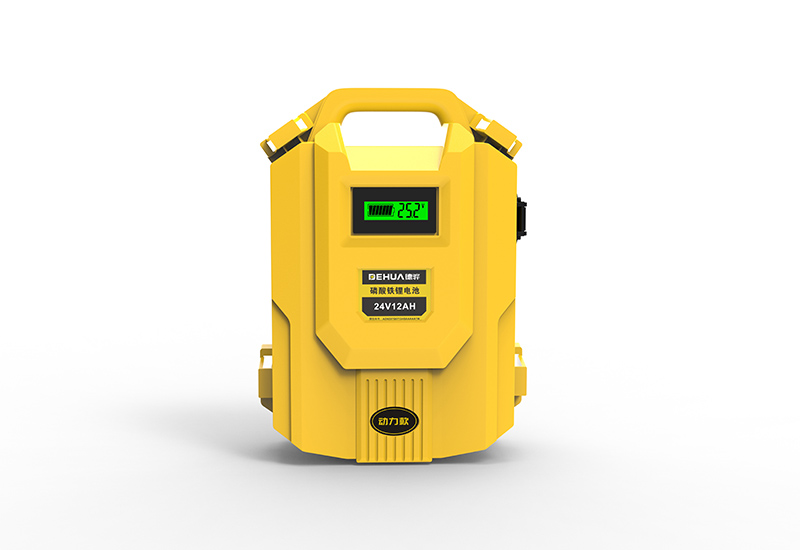

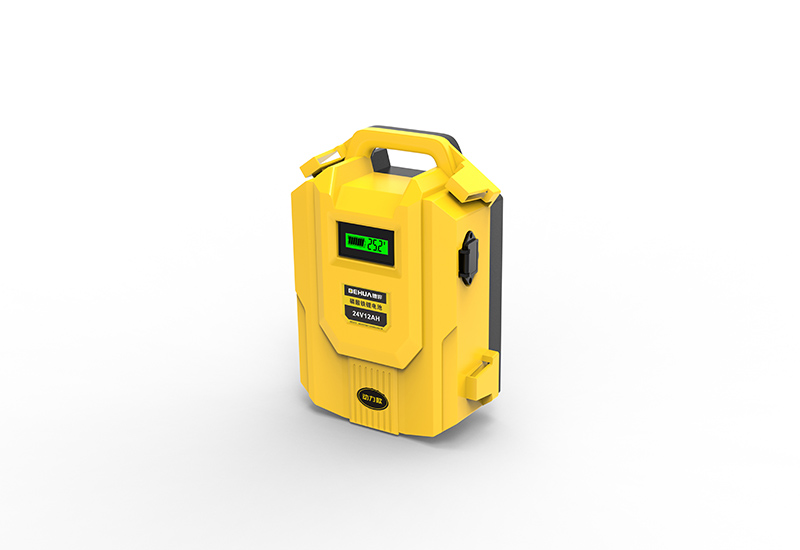

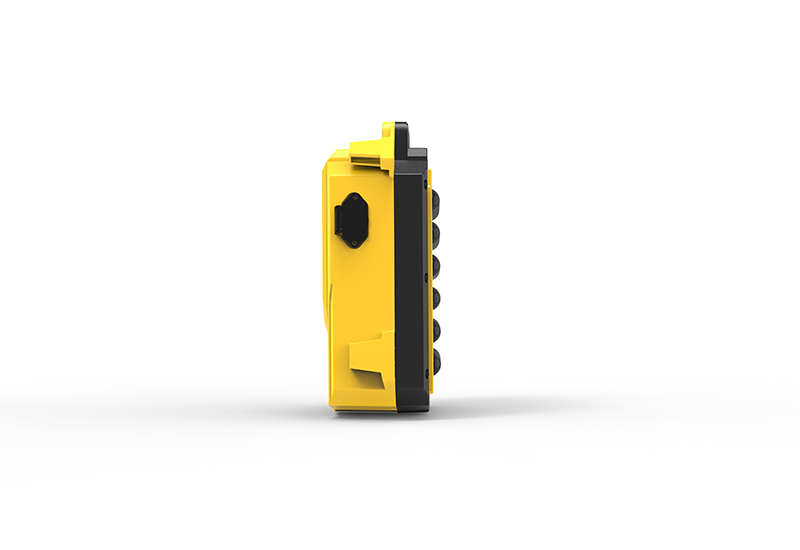

DH-24V12A(C type)
Ternary lithium battery

Model:DH - 24V12Ah

mAh:12Ah

Cell

Dimensions:158*158*93(mm) 230*159*98(mm) 275*180*98(mm)

Use:Lithium batteries for garden tools

Products - Gardening tool lithium battery DH-24V12A(C type) Ternary lithium battery
Use:Lithium batteries for garden tools
DEHUA
Online
Introduction

Usage precautions

1, please use the manufacturer's matching national standard lithium battery charger to charge;

2, to charge in the set charging area, charging away from flammable materials;

3. Charging voltage, charging current and charging ambient temperature shall not be higher than the upper limit of parameters specified in this manual;

4, correctly connect the positive and negative terminals of the battery to avoid reverse connection;

5, prohibit the use of lithium batteries, do not short circuit lithium batteries;

6, when the battery is impacted by collision, fall, extrusion deformation, test and then use;

7, the use of lithium batteries should be away from fire, heat sources, to avoid direct sunlight;

8, can not privately the voltage, the internal assistant is not the same battery, series charging and use;

9. It is forbidden to disassemble the lithium battery and use sharp instruments to puncture the lithium battery;

10, once the lithium battery is on fire, the fire lithium battery is quickly buried in water or soil;

11, it is strictly prohibited to charge lithium batteries in the corridor or the house;

Transportation

1. No metal items are allowed above the lithium battery during transportation;

2, it is prohibited to mix with other items during transportation;

3, lithium battery less than 50% of the state transport

Store

1, lithium battery 50% power storage, supplement once a month, can extend the service life;

2, long-term storage of lithium batteries, should be placed in a dry, ventilated and cool place, the ambient temperature of 0~35℃ humidity 5%;

3. Lithium batteries are prohibited from being stored near fire sources and high temperatures;

4, storage lithium battery pay attention to moisture, waterproof, prevent water;

Peculiarity
  • High energy density

    The energy density of lithium batteries far exceeds that of other types of batteries, such as lead-acid batteries and nickel-metal hydride batteries. Under the same volume, the energy density of lithium batteries can reach 180-220Wh/Kg, or even higher.

  • High security

    Lithium battery has good thermal stability, is not easy to occur thermal fusion, and its internal resistance value is very small, can effectively prevent self-discharge, so as to achieve safe and reliable use.

  • Small size and light weight

    The volume and weight of lithium batteries are smaller than traditional batteries, which makes lithium batteries widely used in a variety of electronic devices, such as mobile phones, laptops, cameras, power tools and so on.

  • Charge and discharge speed is fast

    Lithium battery charging speed is fast, save time, can work normally between -20℃ ~ 60℃, adapt to various environmental conditions.

Specification


Items

Parameters

Remarks

Battery model

DH - 24V12Ah


Nominal voltage

25.9 V


Nominal capacity

12Ah

0.5 C, 25 ° C

Combination method

7S6P


Battery materials

Ternary from NCM3.7V2000mAH


Discharge - working current

15A/30A


Discharge - Maximum current

25A/42A

<2S

Discharge - cut-off voltage

About 19.6V


Charge - Charge voltage

29.4 V


Charging - Maximum current

3A


Charge - Charge mode

Constant current/constant voltage

CC/CV

Charge - Charge cut-off current

About 0.02CsA

CC/CV

Operating temperature/humidity - charging temperature

0°C ~ +45°C

At60±25%RH

Operating temperature/Humidity - Discharge temperature

-10°C ~ +55°C

At60± 25%RH When the ambient temperature is greater than 45°C, pay attention to ventilation and heat dissipation

Operating temperature/Humidity - Charge and discharge humidity

RH60%

Pay attention to waterproofing when it is greater than 60%

Protective features

Over charge protection, over discharge protection, over current     protection, short circuit protection


Weight

Material of 2.5 KG / 2.6 KG / 3 KG


Max size (L*W*H)

158 * 158 * 93 (mm) 230 * 159 * 98 (mm) 275 * 180 * 98   (mm)


Loop

>300

0.5 C, 25 ° C





*Note: Products are constantly updated and upgraded. If the feature description and technical parameters differ from the actual product, the actual product shall prevail.
